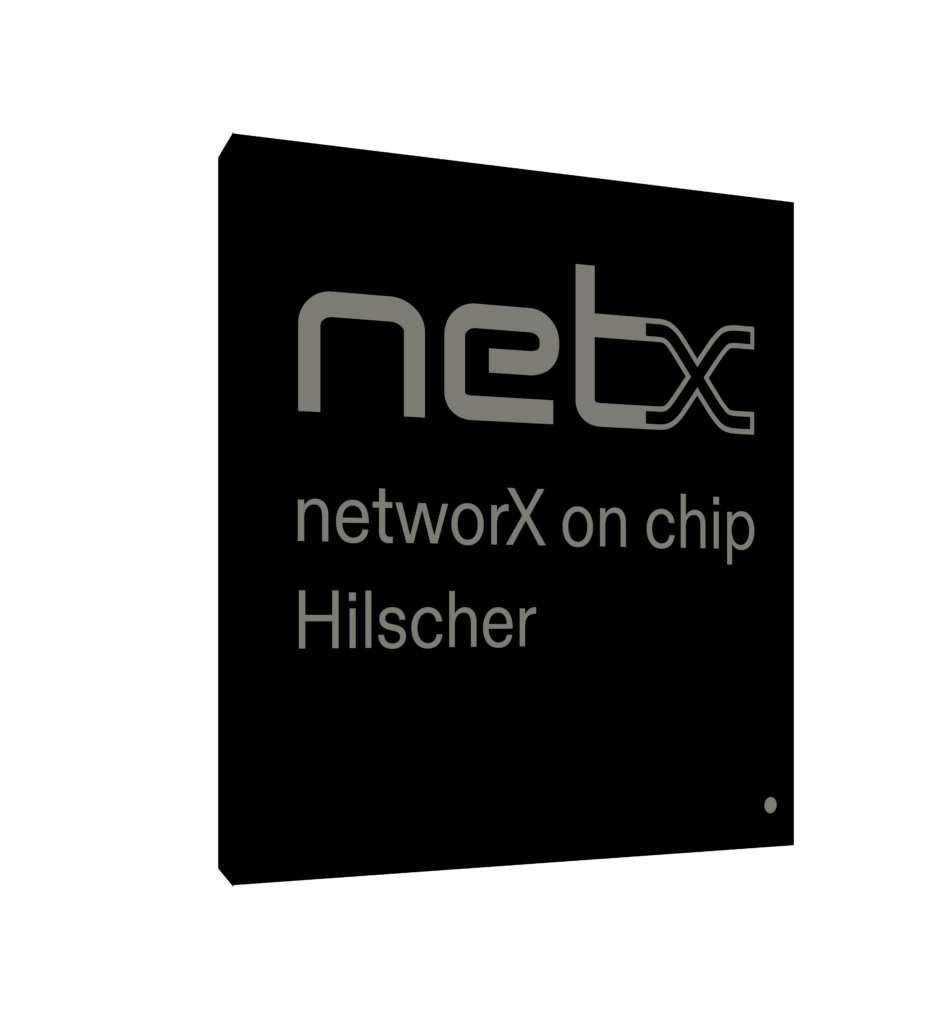

The netX chips combine leading edge communication with hardware platforms for different applications. We want to enable our customers to focus completely on their specific application know-how and use the unique capabilities of our hardware platforms to differentiate their products in the market.
Programmierbare Einheit
Sercos
ProfiNet
Ethernet/IP
EtherCAT
All netX chips are based on the proven XC module from Hilscher. This programmable unit supports a variety of fieldbuses and Real-Time Ethernet communication standards. Typically, two XC channels are required in Real-Time Ethernet protocol ring structures. Examples of this are PROFINET IRT, EtherCAT and Sercos III.
In contrast, most fieldbuses, such as PROFIBUS or CAN, only require one XC channel. The same applies to some “Soft Real-Time Ethernet” standards, such as PROFINET RT and EtherNet/IP, which also manage with just one XC channel.
Translated with DeepL.com (free version)
The second generation of the XC module, known as XC-Gen2, has been specially developed for PROFINET IRT V2.3. This module is characterized by an advanced dual-processor architecture that is similar to the second generation of the Siemens ERTEC 200P controller.
Since the introduction of the netX 4000 chip, the netX chips have had integrated crypto accelerators. These were developed to meet the modern requirements of Industrial IoT and Industry 4.0 applications and to ensure secure communication in industrial networks.
| Device | Description | Specialties | Year | XC-Channels | System CPU | Nr of CPU Cores | Tech node | integrated RAM (kByte) | ETH PHY | Interfaces | Crypto Core | Package (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| netX 500 / netX 100 | 4 channel network controller for Fieldbus and RT-Ethernet master and slaves | 4 channels + Powerfull CPU for Master Communication, MMU + Display Controller | 2005 | 4 | ARM 926 @200MHz | 13 | 150nm | 248 | 2 | USB, UART, SPI, I2C, Display Controller, ADC | – | BGA 345 (22 x 22) |
| netX 50 | Network controller for Fieldbus and RT-Ethernet slaves | Integrated communication with Ethernet PHY and protocol stack | 2008 | 2 | ARM 966 @200MHz | 7 | 150nm | 148 | 2 | USB,3x UART, 2xSPI, 2xI2C, 8x IO-Link | – | BGA 324 (19 x 19) |
| netX 5 | Network processor for Fieldbus and RT-Ethernet | No PHY, no CPU for protocol stack | 2009 | 2 | – | 7 | 180nm | 100 | – | SPI | – | BGA 201 (13 x 13) |
| netX 10 | Network controller for Fieldbus and Soft-RT-Ethernet | Single XC, no ext. SDRAM required | 2010 | 1 | ARM 966 @100MHz | 5 | 150nm | 142 | 1 | SPI, SQI, 2x UART, I2C, USB1.1, 4x IO-Link, ADC | – | BGA 197 (13 x 13) |
| netX 51 | Network controller for Fieldbus and RT-Ethernet slaves with external memory | XC Gen2, pin compatible to netX 50 | 2012 | 2 (Gen2) | ARM 966 @100MHz | 10 | 150nm | 740 | 2 | SPI, SQI, 3x UART, 2x I2C, CAN, ETH MAC, USB1.1 | – | BGA 324 (19 x 19) |
| netX 52 | Network controller for Fieldbus and RT-Ethernet slaves | XC Gen2 without external SDRAM | 2012 | 2 (Gen2) | ARM 966 @100MHz | 10 | 150nm | 740 | 2 | SPI, SQI, 3x UART, 2x I2C, CAN, ETH MAC, USB1.1 | – | BGA 244 (15 x 15) |
| netX 6 | Network processor for Fieldbus and RT-Ethernet | netX 52 without ARM, RAM reduced | 2013 | 2 (Gen2) | xPIC | 9 | 150nm | 276 | 2 | SPI, SQI, 3x UART, 2x I2C, CAN, ETH MAC, USB1.1 | – | BGA 244 (15 x 15) |
| netX 4000 | Automation Platform on Chip | Dual A9 system for Android and Linux | 2017 | 4 (Gen2) | Communciation: ARM Cortex R7 @400MHz Application: | 23 | 40nm | 3208 | 2 | 2x GMAC, MAC, 4x SPI, SQI, 9x I2C, 3x I2S, 8x UART, 4x CAN, 8x IO-Link, 2x USB2, USB1.1, PCIe, SDIO, 2x Display Controller, ADC | DES, AES, SHA, MD5 | BGA 596 (27 x 27) |
| netX 4100 | 4 channel network controller for Fieldbus and RT-Ethernet master and slaves | XC Gen2 successor of netX 500 | 2017 | 4 (Gen2) | ARM Cortex R7 @400MHz | 21 | 40nm | 3080 | 2 | 2x GMAC, MAC, 2x SPI, SQI, 3x I2C, 4x UART, 1x CAN, 8x IO-Link, USB1.1, PCIe, SDIO, Display Controller, ADC | DES, AES, SHA, MD5 | BGA 420 (23 x 23) |
| netX 90 | Smallest fully integrated multiprotocoll SoC | 1.5MB Flash separated application CPU System | 2018 | 2 (Gen2) | Communication: Application: | 12 | 90nm | 724 | 2 | ETH MAC, 3x UART, 4x SPI, SQI, 4x I2C, 2x CAN, 8x IO-Link, 2x BISS, 2x EnDat, ADC | ECC, RSA, AES, SHA, MD5 | BGA 144 (10 x 10) |
Note: Most netX chips integrate the Ethernet PHY, which explains an addon of ~600mW in power dissipation when activated.
